How to Determine the Right Number of Sprinkler Heads per Zone

Nobody wakes up with a picture-perfect lawn by accident.  It’s the result of smart irrigation and proper zoning. Yes, Zoning is a big deal.Having too many or too few sprinkler heads in a single zone results in uneven watering, water wastage, andpatchy grass, resulting in poor lawn health.  Trust us, your yard deserves better. That is Why in his Guide,we”ll tell you how to figure out exactly how many sprinkler heads you need in each area. There will  be no rocket science, just clear steps, for effective irrigation all the time. Lets start

What Is a Sprinkler Zone?

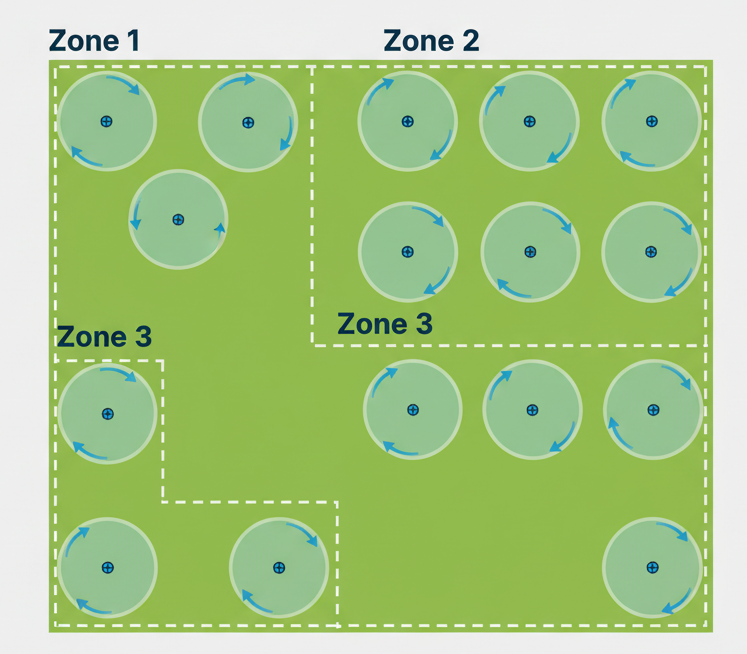

A sprinkler zone refers to a designated section of your lawn that’s irrigated by a specific group of sprinkler heads controlled by a single valve. Instead of trying to water your entire yard at once, irrigation systems divide large lawns into multiple zones to ensure equal watering.The main reason for creating zones is that large areas may exceed the capacity of your water supply and makes it difficult to deliver adequate pressure and flow to every sprinkler at once. By dividing your yard into zones, each area receives the right amount of water without overloading the system.

Key Factors That Affect How Many Sprinkler Heads per Zone You Need

Honestly, figuring out how many sprinkler heads you need per zone is way more complicated than just plopping them down in a neat little grid. There’s science behind it—well, at least some math and a bit of common sense.

Water Pressure

First up, water pressure. That’s the PSI (pounds per square inch) thing you always hear about but usually ignore until your shower turns lame. If your pressure’s weak, those sprinklers are just going to spit water right at their own feet. Crank it up too high and, boom, you’re watering the neighbor’s yard (and probably just making a misty mess). The pressure you’ve got sets the max number of heads you can run at once before everything goes sideways.

Flow rate

Next factor you should consider is the Flow rate which is  measured in gallons per minute (GPM), tells you how much water your system delivers. Each sprinkler head uses a certain GPM, so the total GPM of all heads in a zone must stay within your system’s capacity. If you try to run too many at once, you’ll choke the system. Suddenly, some heads will just dribble while others are blasting like geysers.

Sprinkler Type

sprinklers come in all shapes and sizes for examplesprinkler with Rotor heads cover large areas with low flow rate while spray heads cover smaller areas but may use more water per square foot.  Drip emitters provide slow and steady watering for planst. Knowing about your Sprinklers help you determine how many can run together in a zone.

Lawn Size

Last but not least is  your yard’s size and shape. A long, narrow lawn will need more zones or heads spaced closer together, while a square yard might require fewer heads per zone. Hills, curves, and plant beds also affect coverage, so each zone should be designed to provide uniform watering without overspray or dry patches.

Steps to Calculate Sprinkler Heads per Zone

Step 1: Check Your Water Pressure and Flow Rate

 Alright, first things first—grab a pressure gauge and stick it on an outdoor faucet. That’ll give you the PSI (pounds per square inch). For flow rate—GPM (gallons per minute)—just fill up a bucket (make sure you know how many gallons it holds), time it, and do a little math. Super high-tech, right?

Step 2: Check Your Sprinkler Head’s GPM Rating

Every sprinkler head has its own “I need water!” or GPM number. It’s usually stamped on the packaging or buried in the instructions GPM per head. Rotors tend to guzzle about 2–3 GPM, sprays a bit less, maybe 1–2 GPM. Note this value carefully—it’s key to your calculation.

Step 3: Divide Total System GPM by the Sprinkler Head GPM

Here comes the thrilling math part (try not to fall asleep). Take your total GPM from the bucket test and divide it by the GPM required by one sprinkler head. Boom that’s how many heads you can run in a single zone without the whole thing sputtering or choking.

Step 4: Example Calculation
Let’s say your water flow rate is 10 GPM, and each sprinkler head uses 2.5 GPM.

10÷2.5=410 ÷ 2.5 = 410÷2.5=4

That means you can run 4 sprinkler heads per zone for optimal performance.

Pro Tip: Always leave a small safety margin (around 10–15%) below your maximum flow rate to account for minor pressure fluctuations and ensure consistent watering.

Common Mistakes to Avoid

Forgetting About Pressure Loss From Pipe Length

As water travels through pipes, it loses pressure due to friction. The longer the pipe, the more pressure drops before reaching the sprinkler heads. If you don’t account for this loss, the last sprinklers in the line may not get enough water, leading to uneven coverage. Do yourself a favor and build in a bit of extra pressure when you’re figuring out your zones, or you’ll regret it later.

Mixing Sprinkler Head Types in One Zone

Whether it’s a rotor, spray or drip, each has its unique flow rate and spray pattern. Installing them together  in a single zone can cause uneven watering since they distribute water at different rates and styles. So remember to Keep similar sprinkler heads types together in one zone to ensure uniform coverage and efficient water use.

Not Considering Elevation Changes

If your yard has slopes or uneven terrain, elevation can significantly affect water pressure. In this case, Sprinklers installed uphill may receive less pressure, while those downhill often get too much, leading to uneven watering. Well, a professional Sprinkler Installation Company in Medford understands how elevation impacts irrigation flow and can design zones that balance water distribution effectively. By factoring in terrain differences, a Sprinkler Installation Company ensures your system prevents both overwatering and dry spots, keeping every section of your lawn consistently healthy.

Messing Up Spray Patterns—Too Much or Not Enough

Spacing matters. Proper spacing is key to even watering. Overlapping spray patterns waste water and cause puddles, while underlapping leaves dry patches. The trick is to follow the manufacturer’s head-to-head coverage advice. It’s boring, sure, but it actually works. Overlap too much, you’re flooding. Not enough, and you’re looking at patchwork. Just measure right and save yourself the headache.

Conclusion

if you really want that backyard to look like something out of a landscaping magazine, you can’t just slap a bunch of sprinklers around and hope for the best. Nope. You gotta pay attention to stuff like your water pressure, what kind of sprinklers you’re using, how your yard’s laid out…all that jazz. Seriously, if you just mix random sprinkler heads or pretend that your yard isn’t basically a rollercoaster of bumps and slopes, you’re setting yourself up for patchy grass and wasted water. Trust me, nobody wants to be “that neighbor.”

And if your system ever shows signs of uneven watering or pressure issues, don’t hesitate to call professional Sprinkler Repair Services. Expert technicians can quickly diagnose problems, fine-tune your zones, and keep your irrigation system performing at its best all season long.
